Today's post is all about the step-by-step process of creating a Template to create a shareable music card that you can use to post your favorite songs on social media.

We'll be making use of the Robots listed below, before tying everything up for usage with a simple program using our Node SDK.

An abstract red vinyl record background, with a music card in the foreground with a picture of a cat closeup as the album art.

Our Template

The Template below may seem unwieldly, so I will break it down into more manageable chunks, and go through each piece individually.

Go ahead and save this Template in your Transloadit console, taking note of the Template ID for later use in this demonstration.

{
  "steps": {
    ":original": {
      "robot": "/upload/handle"
    },
    "import_bg": {
      "robot": "/http/import",
      "url": "/assets/images/blog/2022-05-05-music-cards-1.jpg"
    },
    "waveformed": {
      "robot": "/audio/waveform",
      "use": ":original",
      "result": true,
      "width": 400,
      "height": 200,
      "background_color": "00000000",
      "outer_color": "292C36ff",
      "center_color": "292C36ff",
      "format": "image"
    },
    "add_waveform": {
      "use": {
        "steps": [
          {
            "name": "waveformed",
            "as": "watermark"
          },
          {
            "name": "import_bg",
            "as": "base"
          }
        ]
      },
      "robot": "/image/resize",
      "watermark_size": "80%",
      "watermark_y_offset": 500,
      "watermark_position": "center",
      "imagemagick_stack": "v3.0.1"
    },
    "resize_art": {
      "use": ":original",
      "height": 400,
      "width": 400,
      "resize_strategy": "fillcrop",
      "robot": "/image/resize",
      "imagemagick_stack": "v3.0.1"
    },
    "watermark": {
      "use": {
        "steps": [
          {
            "name": "resize_art",
            "as": "watermark"
          },
          {
            "name": "add_waveform",
            "as": "base"
          }
        ]
      },
      "robot": "/image/resize",
      "watermark_size": "60%",
      "watermark_y_offset": -200,
      "watermark_position": "center",
      "text": [
        {
          "text": "${fields.artist}",
          "size": 84,
          "font": "Ubuntu",
          "color": "#292C36",
          "valign": "bottom",
          "align": "center",
          "x_offset": 0,
          "y_offset": -250
        }
      ],
      "imagemagick_stack": "v3.0.1"
    },
    "merged": {
      "robot": "/video/merge",
      "preset": "hls-1080p",
      "width": "${file.width}",
      "height": "${file.height}",
      "use": {
        "steps": [
          {
            "name": ":original",
            "as": "audio"
          },
          {
            "name": "watermark",
            "as": "image"
          }
        ],
        "bundle_steps": true
      },
      "ffmpeg_stack": "v6.0.0"
    }
  }
}

Our background

First, we use the /http/import Robot to import the background of our sound card. It's just a simple two-tone frame with the Transloadit logo, on top of which we can layer our other elements.

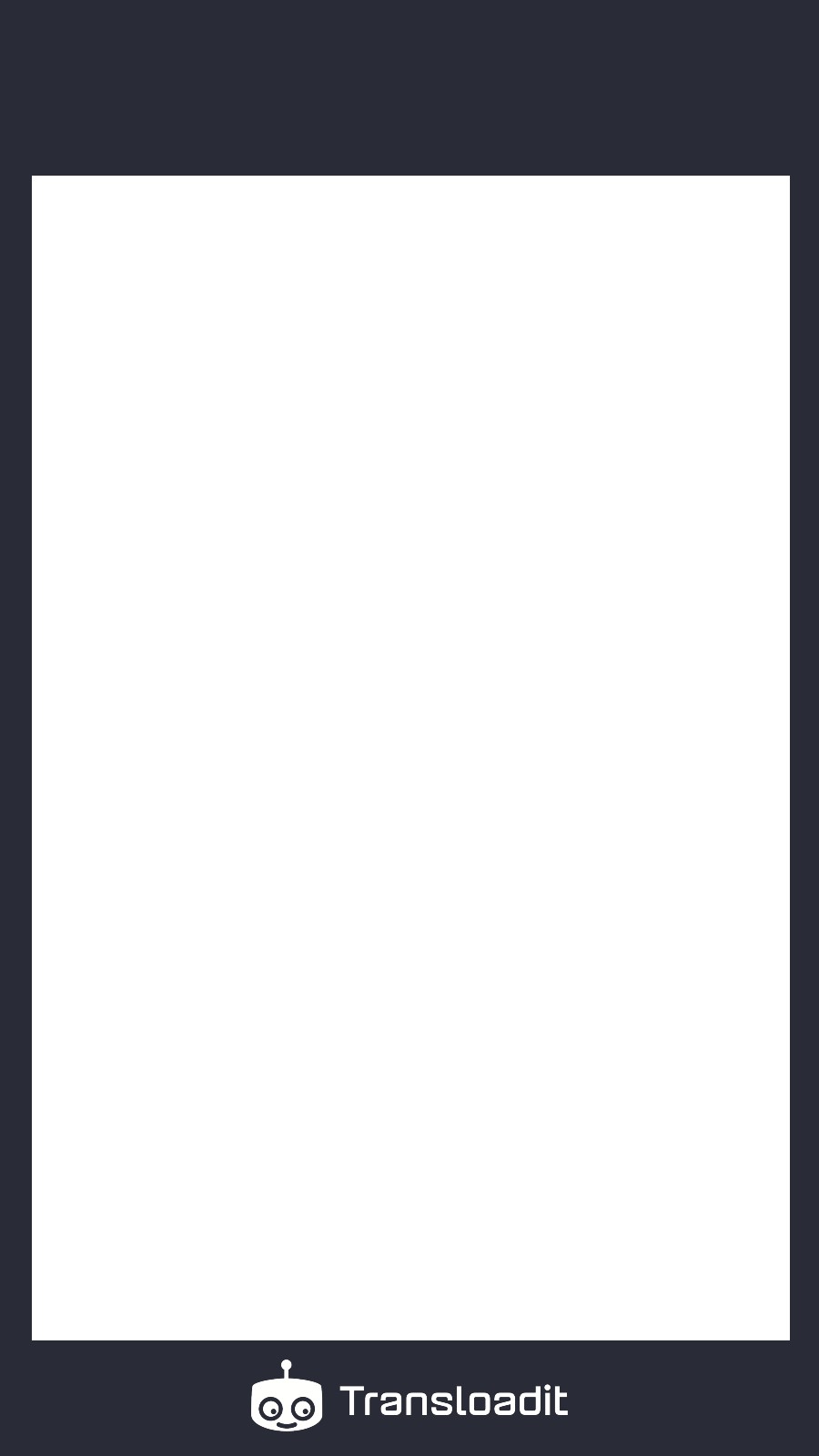

Background of the sound card

The waveform

Then, using our /audio/waveform and /image/resize Robots, we create a waveform image with a transparent background to then watermark it on top of our plain background. To position the waveform where we want it on our Template, we utilize the watermark_y_offset and watermark_position parameters.

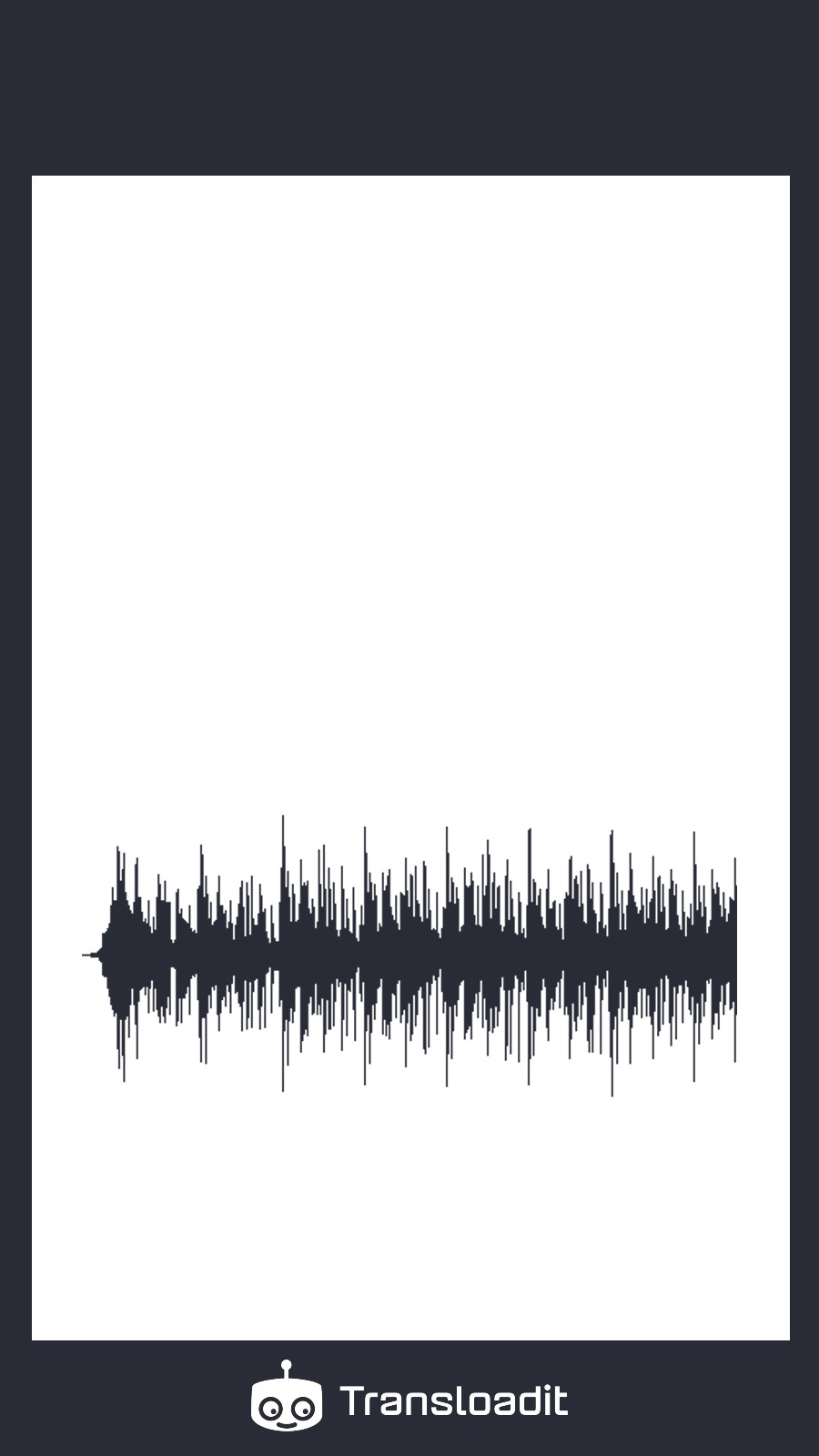

Card with a waveform

Adding the art and artist

It's now just a matter of resizing the artwork we uploaded and watermarking it on top of the previous Step's result. We'll also include some text with the artist's name at the bottom of the card. We achieve this using text watermarking, along with a form field value.

We employ the fillcrop strategy to ensure that the art fills the desired square on our sound card. Again, the watermark_y_offset and y_offset parameters come in handy, ensuring that everything is properly positioned on our card.

Merging with the music

Our final Step will use the /video/merge Robot to combine our still frame with music to make a playable video. We'll use Assembly Variables for the height and width parameters to ensure that the dimensions of the video are consistent with the original image.

Code

With the Template explained, let's now create an Assembly using the program below, while making sure we have an input image and audio file in our working directory:

// yarn add transloadit@3
const Transloadit = require('transloadit')

// eslint-disable-next-line import/newline-after-import
;(async () => {
  const transloadit = new Transloadit({
    authKey: process.env.TRANSLOADIT_AUTH_KEY,
    authSecret: process.env.TRANSLOADIT_SECRET_KEY,
  })

  const assemblyStatus = await transloadit.createAssembly({
    waitForCompletion: true,
    files: {
      file1: process.env.ARTWORK,
      file2: process.env.MUSIC,
    },
    params: {
      template_id: 'YOUR_TEMPLATE_ID',
      fields: { artist: process.env.ARTIST },
    },
  })

  console.log(`Here is your final result: ${assemblyStatus.results.merged[0].ssl_url}`)
})().catch((err) => {
  console.log(err)
  process.exit(1)
})

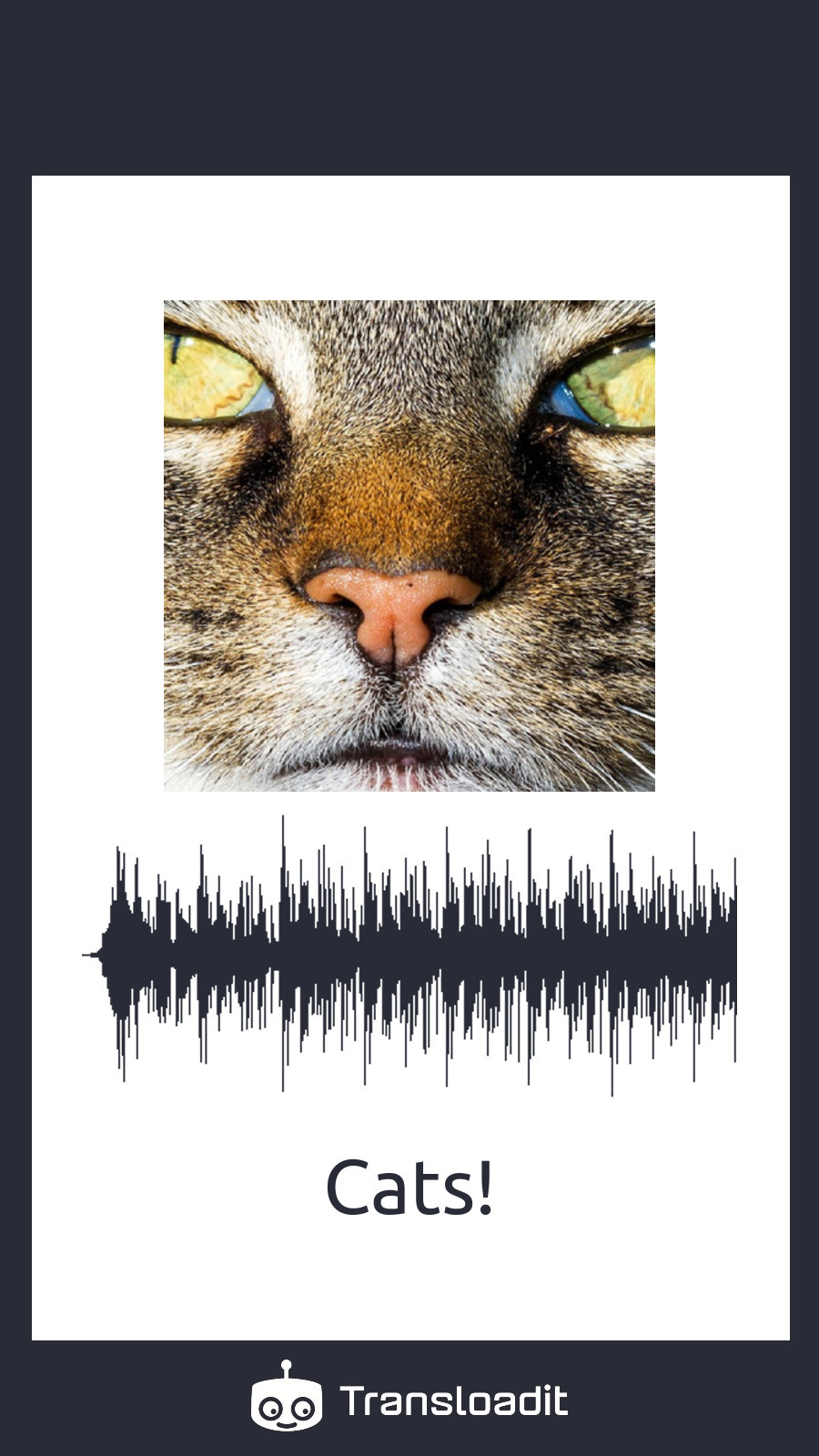

Music card with the artwork and the artist name

To run the script, use the following commands:

# I got these credentials from: https://transloadit.com/c/my-app/template-credentials
export TRANSLOADIT_AUTH_KEY=****
export TRANSLOADIT_SECRET_KEY=*******
export ARTIST=Cats!
export ARTWORK=./cat.jpg
export MUSIC=./sample.mp3

node music-card.js

After a few seconds, it outputs:

Here is your final result: YOUR_RESULT_URL

And sure enough, if we open our result URL, you'll see the following result:

Wrapping things up

That's all there is to it! I hope you had a good time and learned a few things along the way. If you have any questions, please contact us via support; we'll be happy to assist you. Also, keep an eye out for future Let's Build editions, where we'll continue to release projects like this one 😉
